YuanLey 16 Port PoE Switch with 2 Gigabit Uplink, 16 PoE+ Port 10/100Mbps Network Switch, 802.3af/at Compliant, Durable Metal with 250W High Power, Unmanaged Plug and Play

SKU: YS20162F-P
5.0 （50 Reviews）
100 Sold
$109.99 $149.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    WareHouse-US
    WareHouse-CA
    WareHouse-UK
    WareHouse-EU
    China
Qty:
-
+
Add to Favorites (36)
  • Description
  • Datasheet
  • FAQ
PoE Switch

PoE Switch

Previous page
  1. PoE Switch
  2. PoE Switch
  3. PoE Switch
  4. PoE Switch
Next page
PoE Switch

PoE Switch


Which is the Best for You?


PoE Switch
YS20162F-P
PoE Switch
YS20162G-P
PoE Switch
YS2080G-P
PoE Switch
YS082G-P
PoE Switch
YS042F-P
PoE Switch
YS20242F-P
PoE Switch
AI-YS2422GS-P
PoE Port 16x10/100Mbps 16x10/100/1000Mbps 8x10/100/1000Mbps 8x10/100Mbps 4x10/100Mbps 24x10/100Mbps 24x10/100/1000Mbps
UpLink Port 2x10/100/1000Mbps 2x10/100/1000Mbps N/A 2x10/100/1000Mbps 2x10/100Mbps 2x10/100/1000Mbps 2x10/100/1000Mbps
POE Power Output 250W 250W 120W 120W 78W 400W 400W
Switch Capacity 12Gbps 16Gbps 16Gbps 12Gbps 1.6Gbps 16Gbps 56Gbps
Dimensions (L x W x H) 10.6 x 7.1 x 1.7 10.6 x 7.1 x 1.7 7.9 x 4.7 x 1.7 7.9 x 4.7 x 1.7 7.9 x 4.7 x 1.7 10.6 x 7.1 x 1.7 17.3x 8.3 x 1.7
Weight (lbs) 3.31 3.31 2.31 2.31 2.15 4.62 5.4
Extend Function ✔     ✔ ✔ ✔
VLAN ✔ ✔   ✔ ✔ ✔ ✔
Output Power 15.4W/30W 15.4W/30W 15.4W/30W 15.4W/30W 15.4W/30W 15.4W/30W 15.4W/30W
Metal Case ✔ ✔ ✔ ✔ ✔ ✔ ✔
Fanless Design     ✔ ✔ ✔
Network Protocol 802.3AF/AT 802.3AF/AT 802.3AF/AT 802.3AF/AT 802.3AF/AT 802.3AF/AT 802.3AF/AT

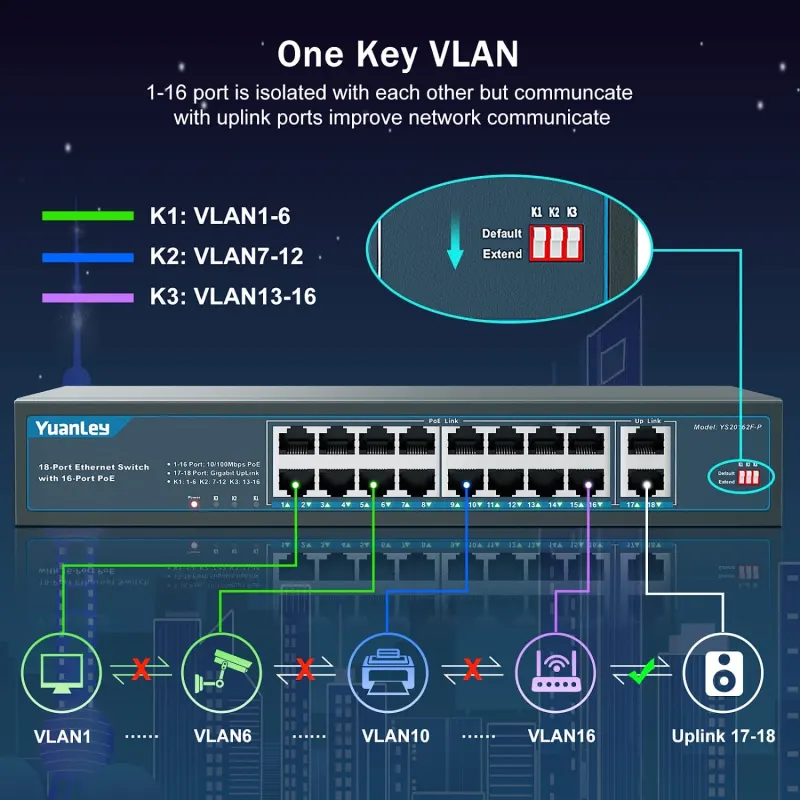

How does the vlan isolation work? what vlan id does each port use? can the uplinks talk to everything with tagging?

When open the extend mode, the poe port 1-16 support vlan isolation, the vlan id is automatic allocation. The uplink ports does not have a vlan id assigned, it will not be isolated, and can communicate with any port.

Can be fixed outdoor?!

He is not waterproof, so it is best not to install it directly outdoors, thank you!

Can i connect m5 point to point for cctv?

No, they use 24vdc. Not the 48 or so the switch uses.

Can it be mounted in a hot attic?

His ambient temperature is -10 ° --55 ° C. Please pay attention to the temperature in the attic, don't be too high, thank you.

Product 16 Port 10/100Mbps PoE switch
Model YS20162F-P
Network Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
Port 16x10/100Mbps RJ45 PoE Port 2x10/100/1000Mbps RJ45 Uplink Port
PoE Model 16x10/100Mbps RJ45 Port Support PoE Supply The Whole Power is 250W Single Port Max. Power is 30W
Power Pin 1-16 Port support IEEE802.3af/at 1/2+ 3/6- End-span
Indicator Each port occupied 1 LINK/ACT.100Mbps PoE Status indicator Whole power indicator
Switch Capability Store and forward MAC address table 2K 12Gbps
Forwarding Rate 10BASE-T:14880pps/port 100BASE-T:148800pps/port
Port Function Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Working Environment Working temperature:-10°-- 55°C
Power Type Power(Built-in) 220V,50HZ ≤250W

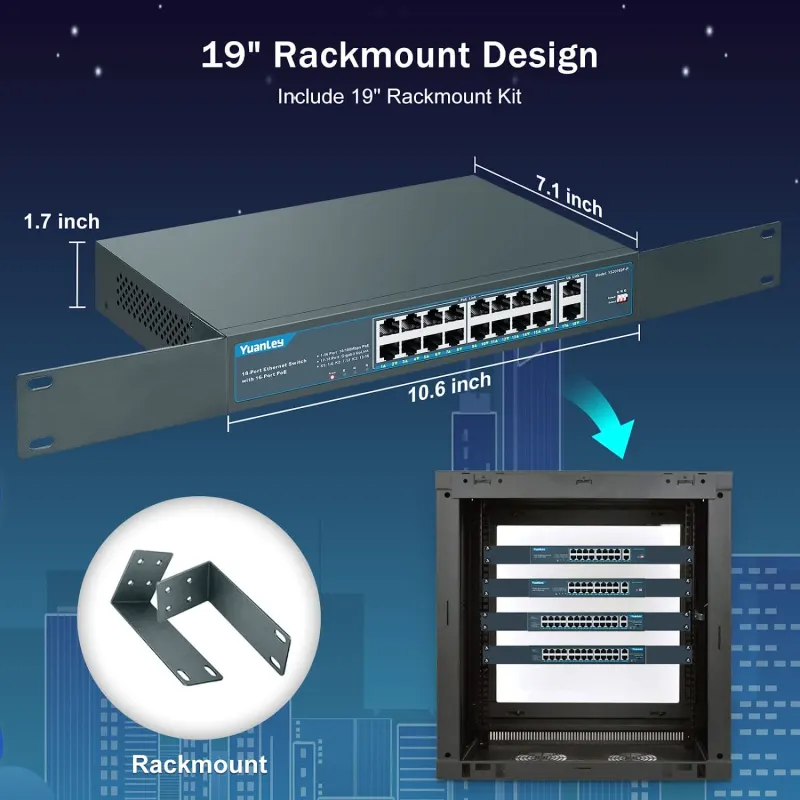

Weight and Size 2.1kg 270mm*180mm*44mm(L*W*H)
