YuanLey 8 Port PoE Switch with 2 Gigabit Uplink, 8 PoE+ Port 1000Mbps Network Switch, 802.3af/at Compliant, Durable Metal with 120W Built-in Power, Unmanaged Plug and Play

SKU:
5.0 (126 Reviews)
225 Sold
$59.99 $89.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    WareHouse-US
    WareHouse-CA
    WareHouse-UK
    WareHouse-EU
    China
Qty:
-
+
  • Description
  • FAQ
PoE Switch

YuanLey 8 Port PoE Switch with 2 Gigabit Uplink

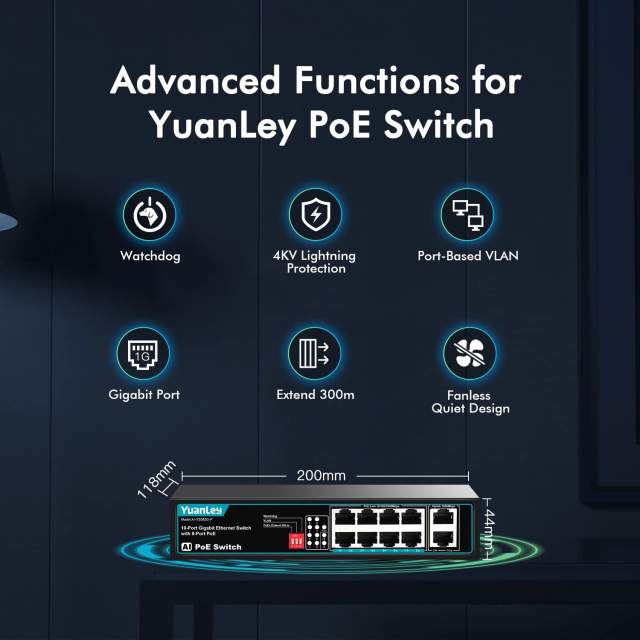

  • 8+2 PoE: 8x10/100/1000Mbps PoE+ RJ45 Ports, 2 Gigabit UpLink Ports. Automatically detect and recognize IEEE 802.3af/at devices.
  • Power: Single port's PoE power reaching 30W, total output power up to 120W.
  • AI Watchdog: Can automatically detect and recovery the POE devices which are no response or go offline, no manual operation and more convenient maintenance.
  • VLAN: 1-8 ports seprately from each other, but communcate with uplink ports, effectively suppresses network storms.
  • Extend 300m: PoE ports support extend to max 300meters high distance transmission. The speed will be automatically changed to 10Mbps when the distance is between 100m-300m.
  • Fanless Design: Sturdy metal casing and fanless heat dissipation design makes the operation silent and quiet.
  • Power Priority: The port priority is in the order of 1-8, from high to low, which effectively keeps the devices with high priority functioning when the network environment is not stable.
  • Wide Operating Temperature: -20-+55℃.
PoE Switch
PoE Switch

Technical Specifications

Model AI-YS082G-P
PoE Port 8x10/100/1000Mbps
UpLink Port 2x10/100/1000Mbps
Output Voltage 48V
POE Power Output 120W
Dimensions (L x W x H) 200 x 118 x 44 (mm)
Weight (lbs) 1.76
Operation TEMP -20-+55℃
PoE Standard IEEE802.3af/at
Power Supply AC 100-240V;50-60Hz
  PoE Switch PoE Switch PoE Switch PoE Switch PoE Switch
  AI-YS082G-P YS2080G-P YS2083GS-P YS20162G-P YS2422GS-P
PoE Port 8x10/100/1000Mbps 8x10/100/1000Mbps 8x10/100/1000Mbps 16x10/100/1000Mbps 24x10/100/1000Mbps
UpLink Port 2x10/100/1000Mbps N/A 2x10/100/1000Mbps 2x10/100/1000Mbps 2x10/100/1000Mbps
POE Power Output 120W 120W 120W 250W 400W
Switch Capacity 20Gbps 12Gbps 12Gbps 12Gbps 56Gbp
Dimensions (L x W x H) 7.7 x 5 x 1.6 7.9 x 4.7 x 1.7 7.9 x 4.7 x 1.7 10.6 x 7.1 x 1.7 17.3x 8.3 x 1.7
Weight (lbs) 1.98 2.31 2.31 3.31 5.4
Extend Function
VLAN N/A
Fan Design Fanless Fanless Fanless Industrial Cooling Fan Industrial Cooling Fan
Case Material Metal Metal Metal Metal Metal

  PoE Switch PoE Switch PoE Switch PoE Switch PoE Switch
  YS042F-P YS2082G-P YS20162F-P YS20242F-P YS2041G-P
PoE Port 4x10/100Mbps 8x10/100Mbps 16x10/100Mbps 24x10/100Mbps 4x10/100/1000Mbps
UpLink Port 2x10/100Mbps 2x10/100/1000Mbps 2x10/100/1000Mbps 2x10/100/1000Mbps 1x10/100/1000Mbps
POE Power Output 78W 120W 250W 400W 78W
Switch Capacity 1.4Gbps 10Gbps 12Gbps 12Gbps 12Gbps
Dimensions (L x W x H) 7.9 x 4.7 x 1.7 7.9 x 4.7 x 1.7 10.6 x 7.1 x 1.7 10.6 x 7.1 x 1.7 7.9 x 4.7 x 1.7
Weight (lbs) 2.15 2.31 3.31 4.62 2.15
Extend Function
VLAN
Fan Design Fanless Fanless Industrial Cooling Fan Industrial Cooling Fan Fanless
Case Material Metal Metal Metal Metal Metal
